TAG ‘E-Z’ Pipe Saw

Range: 1" to 12" (optional up to 24”)

A powerful reciprocating saw, ideal for use on site.
The lightweight construction and ease of set up makes the ‘E-Z’ Saw ideal for site work applications. By using the pipe locking vice or chain locking device the ‘E-Z’ Saw produces square cuts. The ‘E-Z’ Saw is also capable of mitre cutting angles of up to 45 degrees on up to 4˝ pipe. Using the correct blades most materials can be cut including stainless steel and duplex.
The ‘E-Z’ Saw is available in pneumatic and electric.

TAG ‘E-Z’ Pipe Saw

Range: 1" to 12" (optional up to 24”)
Function: cutting up to 45° inclination.
Material: any kind of steel.
Power: pneumatic or electric.

Note: The lightweight construction and ease of set up and operation makes it ideal for site work applications. It is capable of cutting most materials including stainless steel.

Electric version available or a conversion kit to easily change pneumatic to electric.



ACCESSORIES

Pipe locking vice for 1" to 6". Adjustable
blade position to cut angles from 90° to 45°.
Stop feeding stroke included in the
standard equipment.





Chain vice for 4" to 12" . Stop feeding stroke
included in the standard equipment.

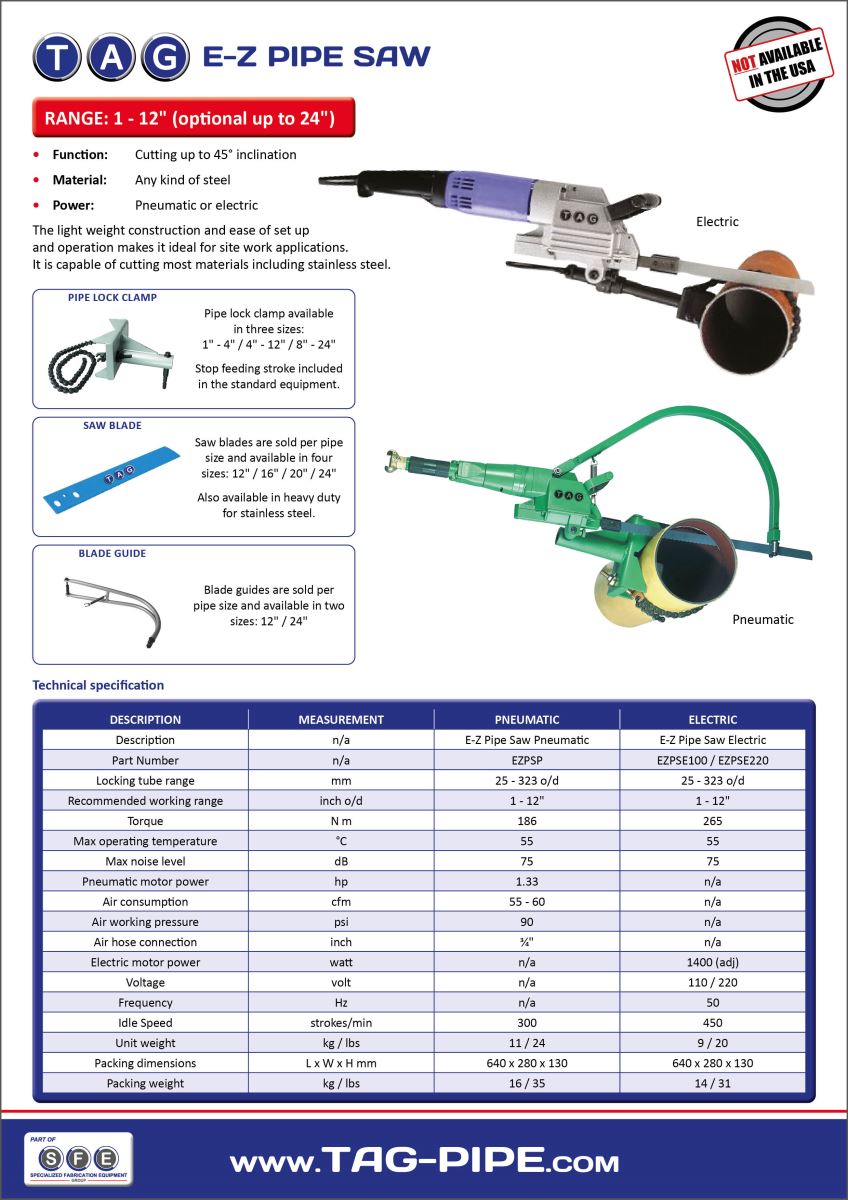

TAG ‘E-Z’ Pipe Saw

Specification


TECHNICAL FEATURES   E-Z SAW E-SAW E
Locking tube range mm 25-323 o/d. 25-323 o/d.
Recommended working range “ (o/d.) 1”-12” 1”-12”
Torque kgm 19,0 27,0
Max operating temperature 55 55
Max noise level dB 75 75
Pneumatic motor power hp 1,33 -
Air consumption cfm 55-60 -
Air working pressure psi 90 -
Air hose connection inches 3/4” -
Electric motor power watt - 1400 (adj.)
Alimentation volt - 220
Frequency Hz - 50
Idle speed strokes/min 300 450
Unit weight kg 11,0 9,0
Packing dimensions mm 640x280x130 640x280x130
Packing weight kg 16 14
