TAG Quattro Pipe Stand

Heavy duty pipe stands for large diameter and heavy wall pipe

The Quattro Heavy Duty Pipe Stands are the ideal solution for heavy duty pipe handling, in the workshop or for site applications.
The Large Vee Head, heavy duty base and variety of head options make the Quattro the most durable and versatile pipe stand on the market.
The Quattro stand can be used as a simple jack stand, supplied as standard with levelling pads to accommodate uneven working surfaces. Weight load tested to 1225kg / 2,700lbs per stand.
The Quattro stands can also be supplied with lockable 8" castor wheels so pipes of up to 36" diameter and any length can be moved around a workshop or site, without the need for a crane or forklift.



TAG Quattro Pipe Stand

Features and Advantages

  • Load capacity 1,225kg / 2,700lbs
  • Variety of head options available
  • Optional castor wheels for pipe transportation
  • Height adjustable
  • Heavy duty box section construction
  • CE Conformity Certified with CE Mark


Quattro Stand Options

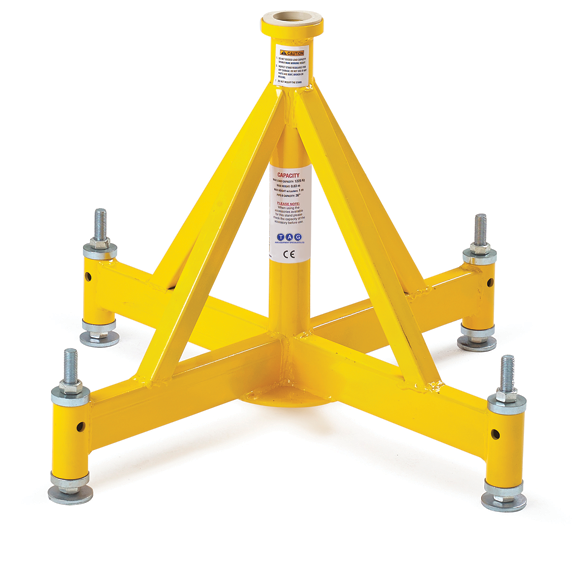

Base Unit (complete with levelling pads)
PART NO. LOAD CAPACITY (KG / LBS) WEIGHT (KG / LBS) PIPE SIZE
QPS400 1,225kg / 2,700lbs 10kg / 22lbs n/a
Large Vee-Head
PART NO. LOAD CAPACITY (KG / LBS) WEIGHT (KG / LBS) PIPE SIZE
QVH400 1,225kg / 2,700lbs 8.5kg / 19lbs 1–36"
Steel and Stainless Steel Wheels
These four-Wheel kits canbe fitted into the QVH400large V-head to enable pipeto be rotated. Steel andstainless steel wheels areavailable to suit allapplications.
PART NO. LOAD CAPACITY (KG / LBS) WEIGHT (KG / LBS) PIPE SIZE
SWH400 1,200kg / 2,645lbs 4kg / 8lbs 1–36"
* SWH400/SS 1,200kg / 2,645lbs 4kg / 8lbs 1–36"
Ball Transfer Head
Consists of two 1-½" rollerballs which can be mountedin vee-head slots for a rangeof up to 36" (915mm) pipe.
PART NO. LOAD CAPACITY (KG / LBS) WEIGHT (KG / LBS) PIPE SIZE
BTH400 1,200kg / 2,645lbs 2.3kg / 5lbs 1–36"
* BTH400/SS 1,200kg / 2,645lbs 2.3kg / 5lbs 1–36"
Nylon Wheel
The kit consists of four nylonwheels that can be mounted into the QVH400 Largevee-head, to enable theQuattro Stand to be usedwith stainless steel withoutthe risk of marking the pipe.
PART NO. LOAD CAPACITY (KG / LBS) WEIGHT (KG / LBS) PIPE SIZE
* NWH400 450kg / 990lbs 1.8kg / 4lbs 1–36"
Stainless Steel Sleeves
When working with stainlesssteel pipe, the sleeve optioninstantly converts the QuattroStand into a speciality toolfor stainless steel welding,preventing carboncontamination.
PART NO. LOAD CAPACITY (KG / LBS) WEIGHT (KG / LBS) PIPE SIZE
* SSS400 1,200kg / 2,645lbs 1kg / 2lbs 1–36"
Hold Down Device
The Hold-Down Device uses hightensile strength for gripping pipeonto the large vee-head wheneither welding or using theQuattro stand for pipetransportation. Chain extensionkits available for pipe up to36" (101cm). Standard upto 18".
PART NO. LOAD CAPACITY (KG / LBS) WEIGHT (KG / LBS) PIPE SIZE
HDD400 n/a 7kg / 16lbs 1–36"
Roller Wheel Kit
Four 8" (20cm) heavy dutywheels make up the QuattroStand Roller Wheel Kit. Thewheels have a quick action brake system.Weight load capacitydependant on head style.
PART NO. LOAD CAPACITY (KG / LBS) WEIGHT (KG / LBS) PIPE SIZE
RWK400 1,225kg / 2,700lbs 11kg / 24lbs n/a

* Suitable for Stainless Steel
