The PMM200 Plate Bevelling Machine is a powerful, portable tool designed for efficient weld preparation on steel and aluminum plates. It handles thicknesses from 6 to 60 mm with a bevel angle range of 0° to 60° and a maximum bevel width of 21 mm. Equipped with a mono block milling head featuring 10 offset inserts, it operates smoothly and can bevel at speeds up to 1.5 meters per minute, with each insert set lasting up to 2000 meters of steel edge. Offering 110V, 220V, and pneumatic power options, the PMM200 includes an advanced electronic control module for safety, guide rolls for easy handling, and high adaptability, making it an essential choice for reliable, precise bevelling in heavy-duty applications.

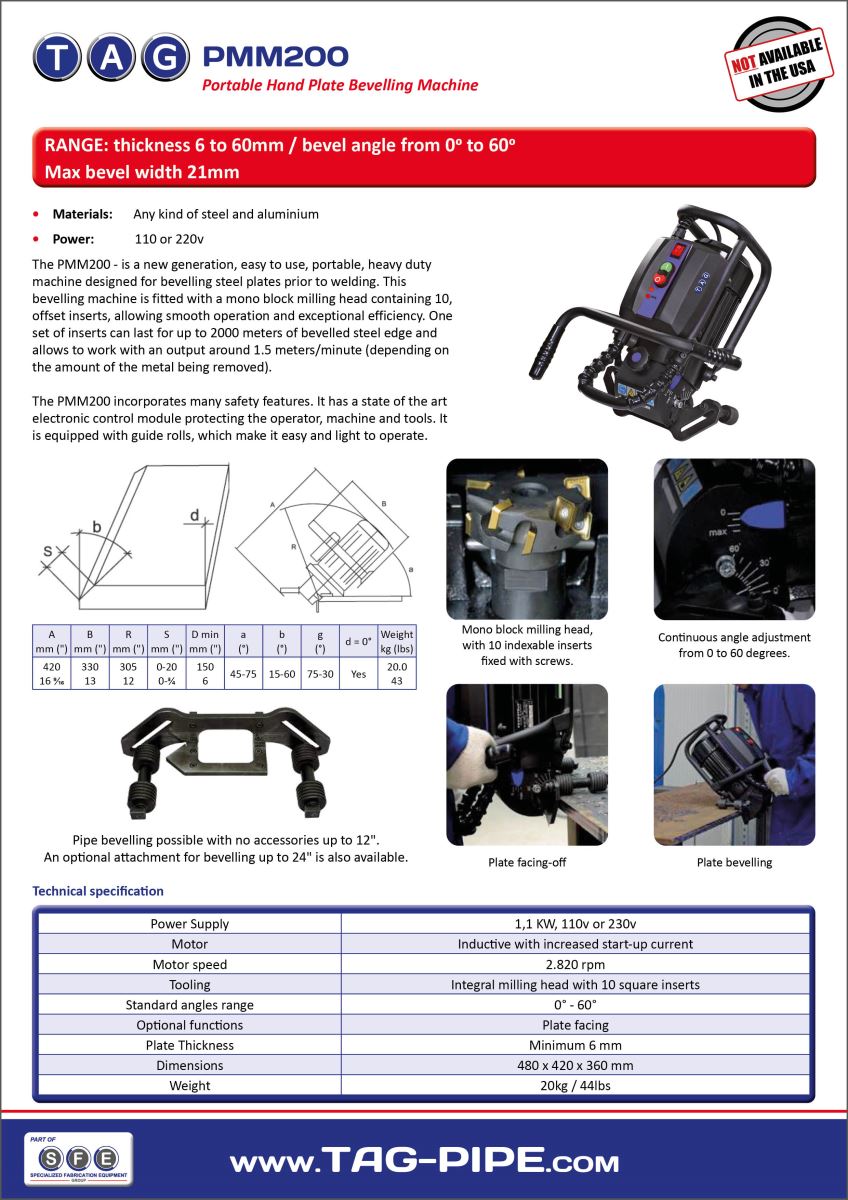

PMM200 Plate Bevelling Machine
thickness 6 to 60 mm / bevel angle from 0° to 60°
Max bevel width 21 mm
NOT AVAILABLE IN THE AMERICAS
Mobile Nav

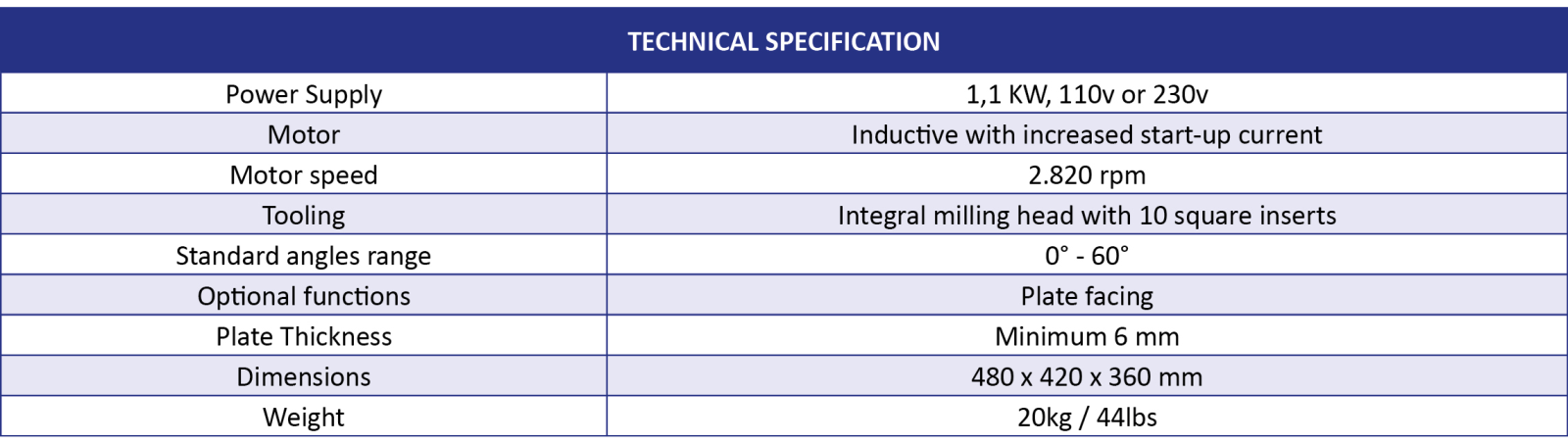

| Power Supply | 1,1 KW, 110v or 230v |
| Motor | Inductive with increased start-up current |
| Motor speed | 2.820 rpm |
| Tooling | Integral milling head with 10 square inserts |
| Standard angles range | 0° – 60° |
| Optional functions | Plate facing |
| Plate Thickness | Minimum 6 mm |
| Dimensions | 480 x 420 x 360 mm |
| Weight | 20kg / 44lbs. |

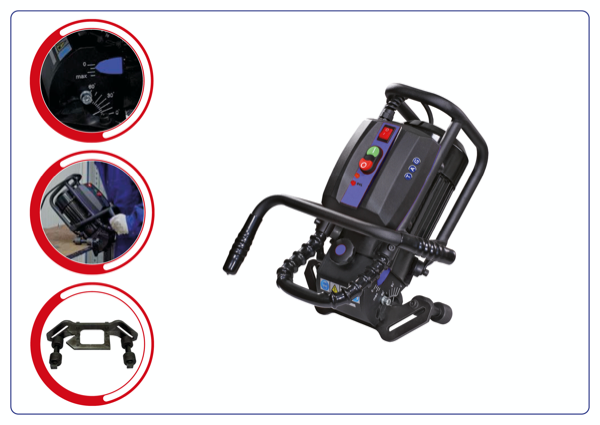

he PMM200 Plate Bevelling Machine is a robust, high-performance tool built to streamline the process of preparing steel and aluminum plates for welding. This portable plate beveller handles plate thicknesses from 6 to 60 mm and offers a bevel angle range of 0° to 60° with a maximum bevel width of 21 mm—ideal for precise, customized weld preparation. Designed with durability and efficiency in mind, the PMM200 features a mono block milling head with 10 offset inserts that ensures smooth, powerful operation and exceptional efficiency.
The machine is engineered to deliver high productivity, bevelling at speeds of up to 1.5 meters per minute, depending on the material and bevel depth. Each set of inserts can last up to 2000 meters of steel edge, providing cost-effectiveness and longevity. With 110V, 220V, and pneumatic power options, the PMM200 adapts to various work environments, and its advanced electronic control module enhances safety for the operator, machine, and tools. Guide rolls add ease and stability, making the machine light and manageable to operate despite its heavy-duty capabilities.
Key Features
- Bevelling Range: Plate thickness from 6 to 60 mm and a bevel angle range from 0° to 60°.
- Max Bevel Width: Cuts bevels up to 21 mm wide, providing a broad range for weld prep.
- Material Compatibility: Suitable for steel and aluminum plates, offering versatility for multiple applications.
- Power Options: Available in 110V, 220V, or pneumatic power to meet diverse requirements.
- Mono Block Milling Head: Equipped with 10 offset inserts for smooth, efficient operation and longevity.
- High Bevelling Speed: Achieves bevelling speeds up to 1.5 meters per minute, enhancing job efficiency.
- Durable Insert Life: Each set of inserts lasts up to 2000 meters, reducing the need for frequent replacement.
- Safety Controls: Advanced electronic control module safeguards the operator and machine components.
- Ease of Operation: Guide rolls ensure smooth, light handling and precise control on the workpiece.
The PMM200 Plate Bevelling Machine combines durability, precision, and user-focused design, making it an essential tool for efficient, high-quality welding preparation across demanding industrial applications.
