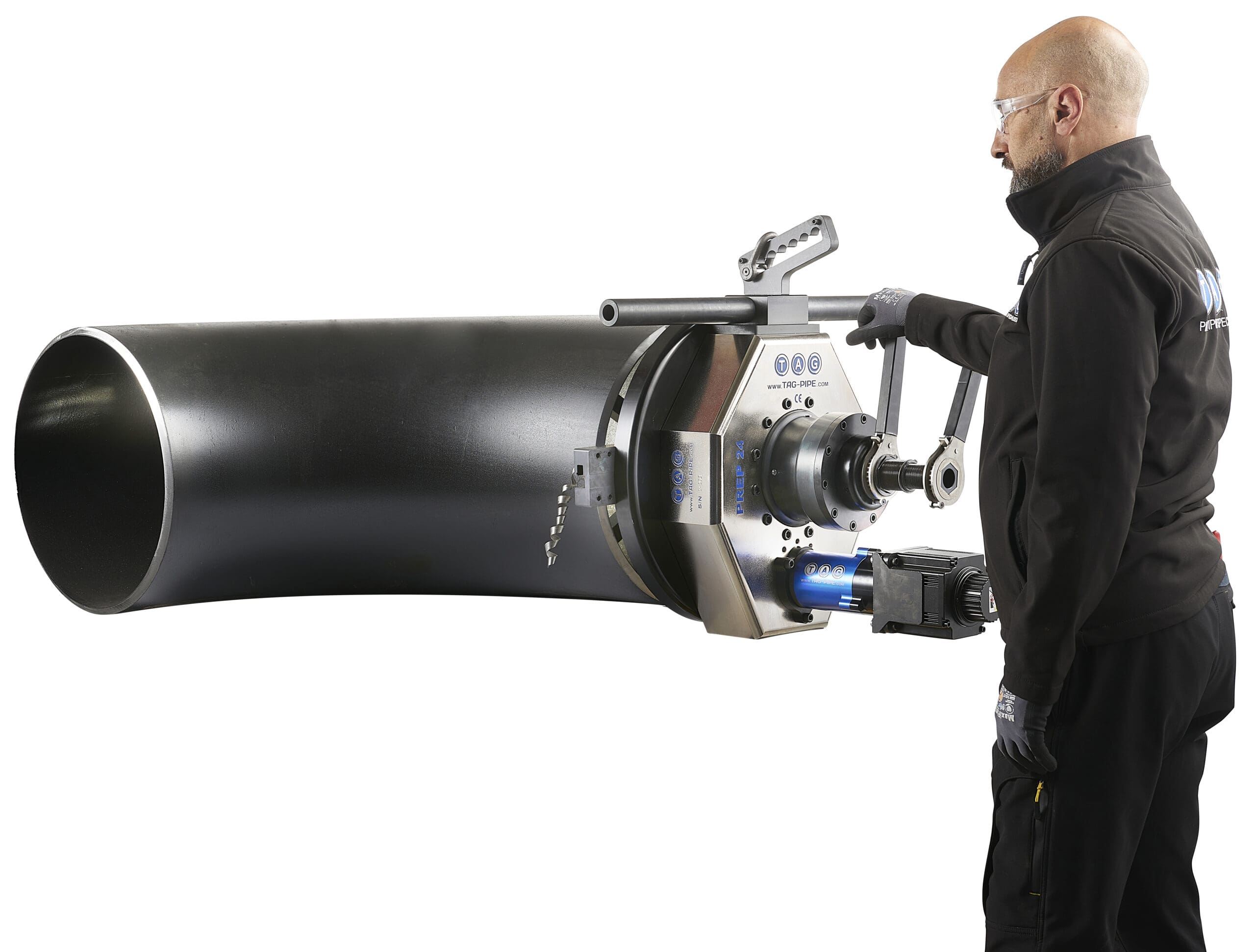

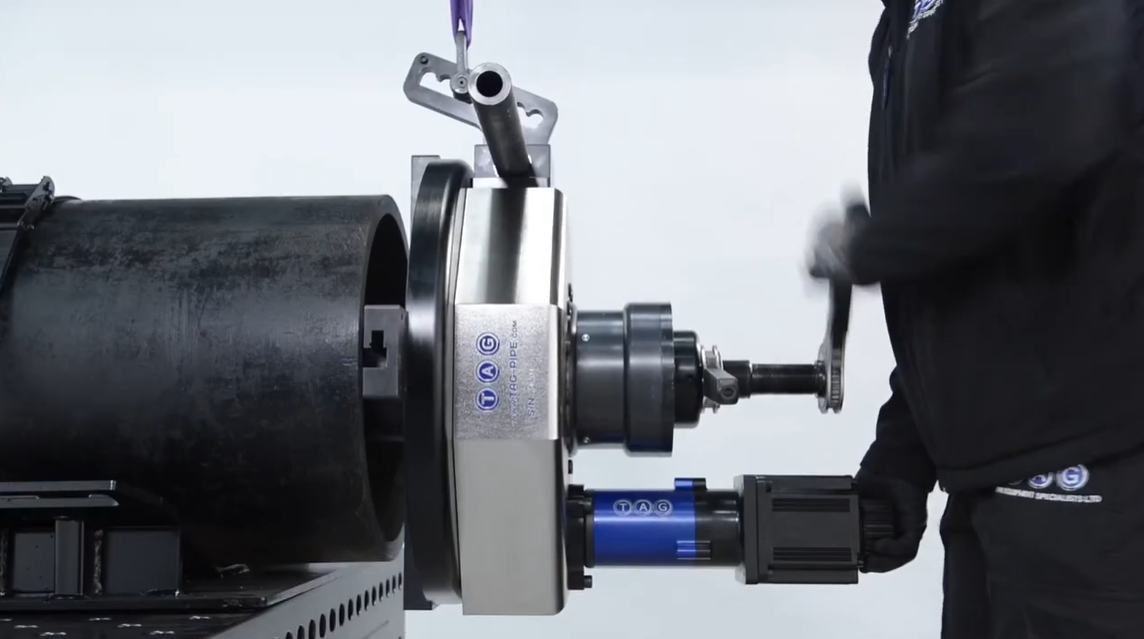

The TAG PREP 16 ELBOW / FITTINGS and TAG PREP 24 ELBOW / FITTINGS complete machine enables bevelling, J-preps, counter boring, and facing on elbows and pipe fittings, due to its heavy-duty yet compact shaft and 6-piece locking jaw system. The machines can be supplied with either a servo electric, pneumatic, or hydraulic motor.
PREP 16 & PREP 24 Elbow / Fitting Pipe Bevelling Machine
RANGE: 5.11 - 23.62" i/d / 130 - 600 mm i/d
Mobile Nav
PREP 16 ELBOW / FITTING PIPE BEVELLING MACHINE
| Description | Pneumatic | Servo Electric | Servo Electric with Auto Feed | Hydraulic |
| Part Number | TP16EP | TP16ESE110 / TP16ESE220 | TP16ESE110AF / TP16ESE220AF | TP16EH |
| Locking Tube Range (i/d) | 130 – 410 mm / 5.11 – 16.14″ | 130 – 410 mm / 5.11 – 16.14″ | 130 – 410 mm / 5.11 – 16.14” | 130 – 410 mm / 5.11 – 16.14″ |
PREP 24 ELBOW / FITTING PIPE BEVELLING MACHINE
| Description | Pneumatic | Servo Electric | Servo Electric with Auto Feed | Hydraulic |
| Part Number | TP24EP | TP24ESE110 / TP24ESE220 | TP24ESE110AF / TP24ESE220AF | TP24EH |
| Locking Tube Range (i/d) | 210 – 600 mm / 8.26 – 23.62″ | 210 – 600 mm / 8.26 – 23.62″ | 210 – 600 mm / 8.26 – 23.62” | 210 – 600 mm / 8.26 – 23.62″ |
Key Features
-
Portable design – ideal for on-site elbow and fitting preparation.
-

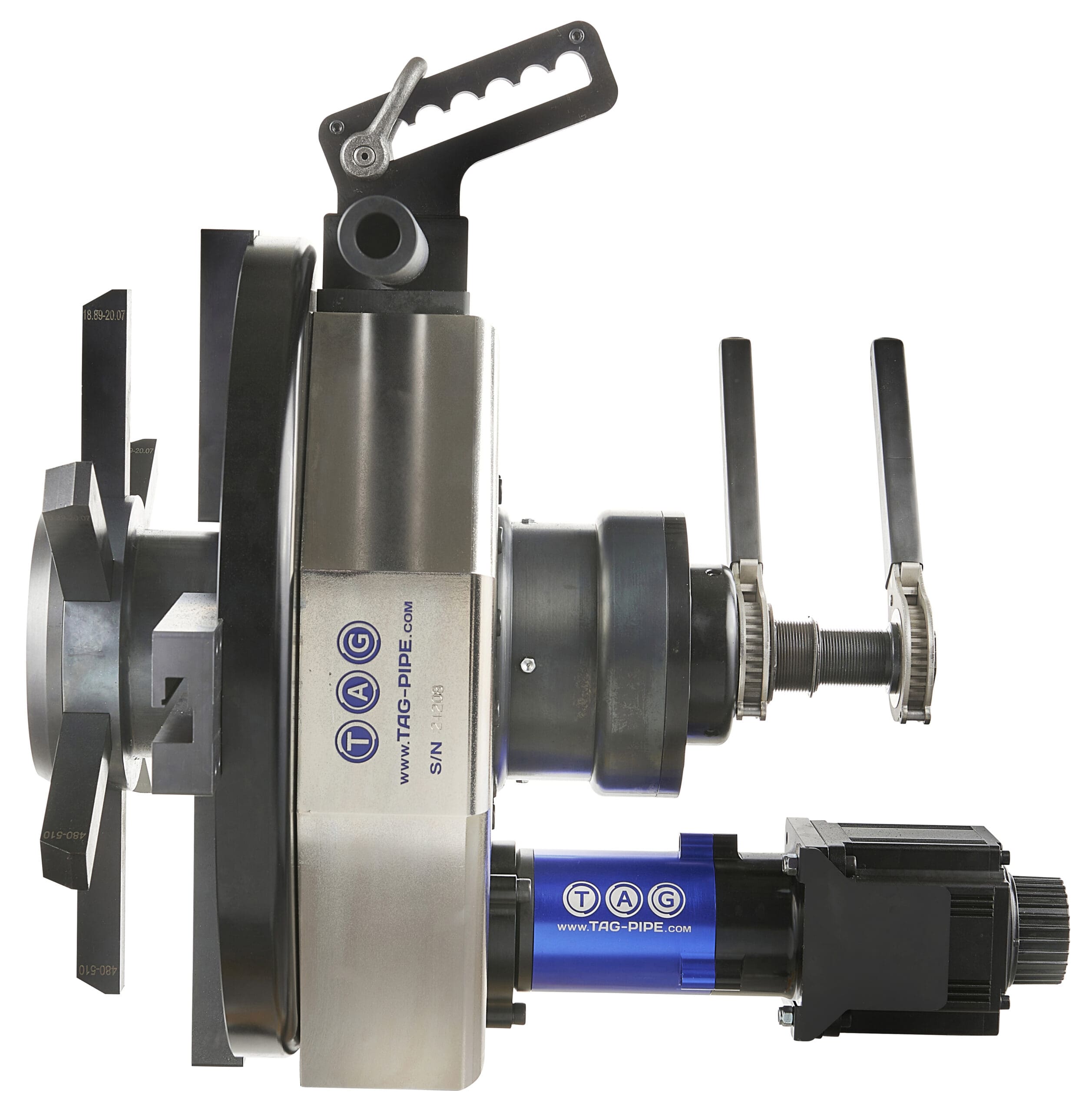

Heavy-duty yet compact shaft – provides strength and precision in a portable package.
-

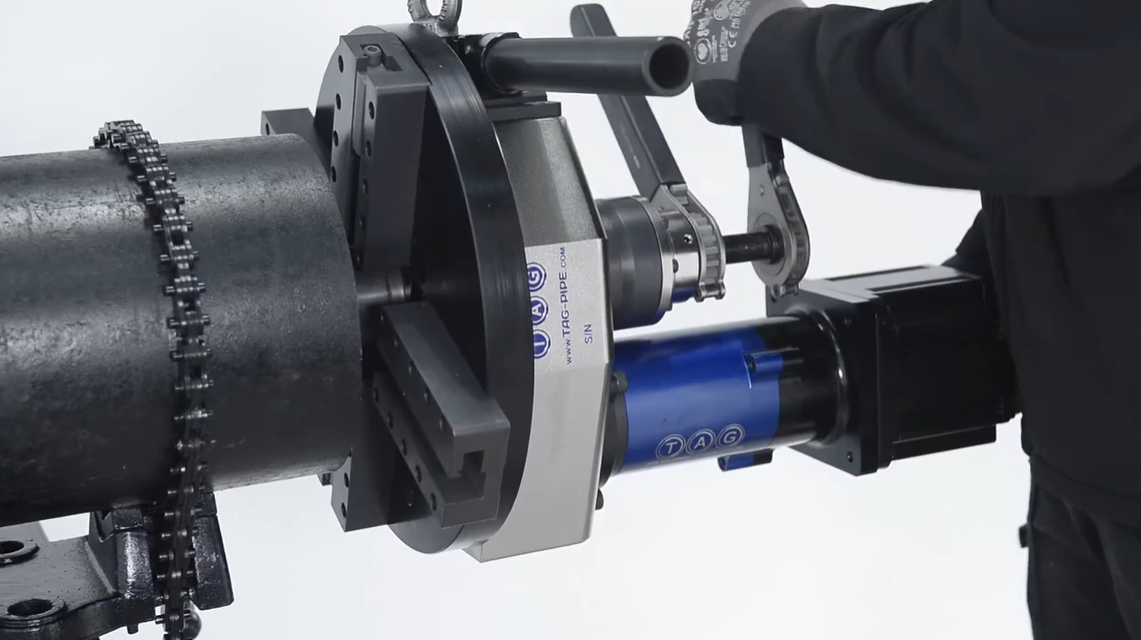

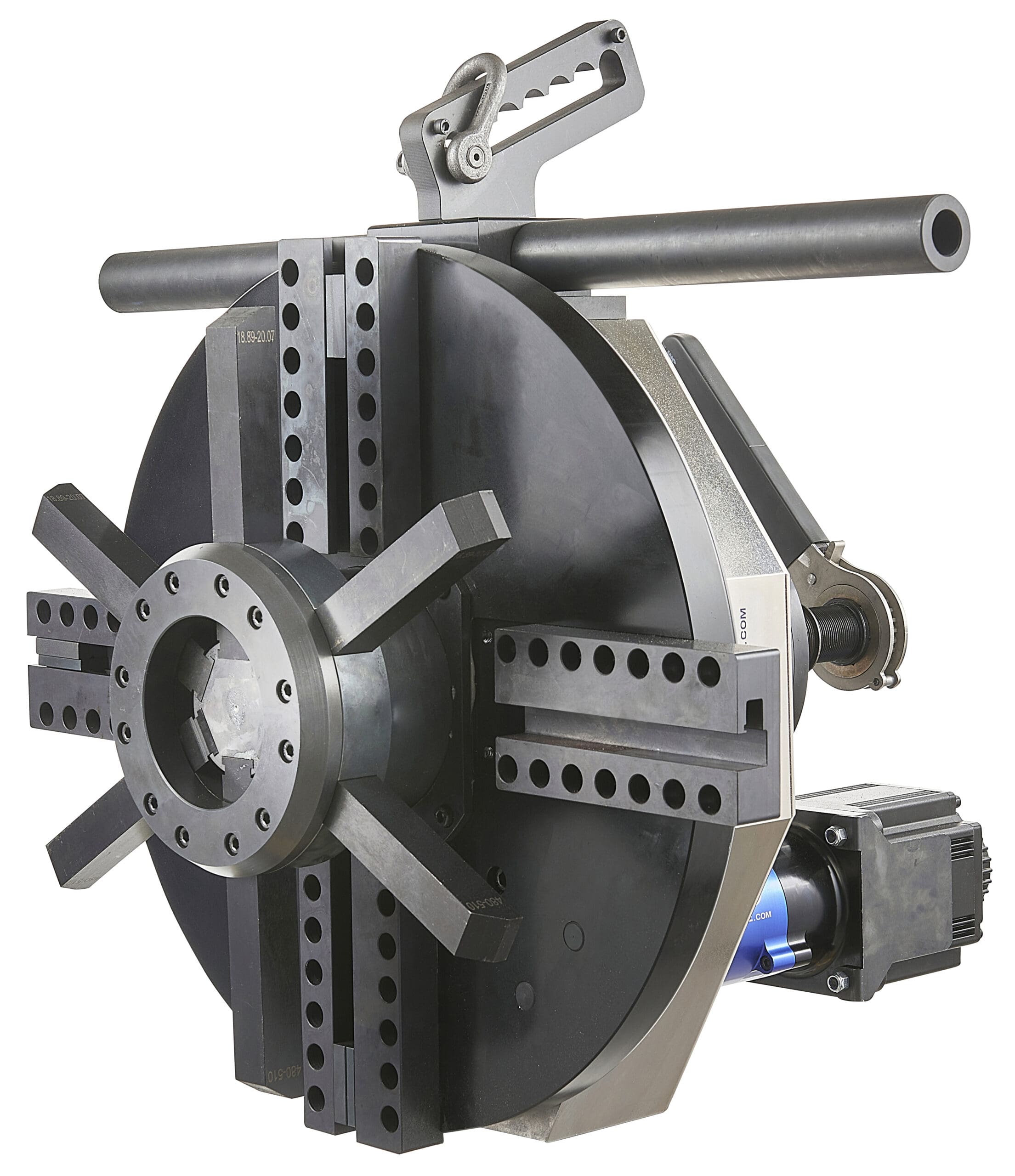

6-piece locking jaw system – ensures secure, centered clamping on elbows and fittings.
-
Versatile machining capabilities – performs bevelling, J-preps, counter-boring, and facing operations.
-
Multi-drive options – available with servo electric, pneumatic, or hydraulic motor configurations.
-
Designed for elbows and pipe fittings – engineered specifically to handle non-straight sections effectively.
-
Precision-engineered construction – delivers consistent, high-quality bevels across multiple materials.
