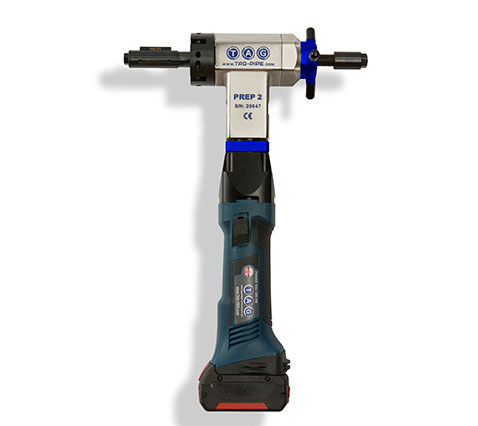

The PREP 2 is a compact, lightweight, and powerful beveller designed for pipe prep, tube prep, and weld prep applications. Available in electric, battery (110v or 220v), or pneumatic drive, it features a 4-jaw tool holder for efficient bevelling, facing, J prep, and weld removal on both thin and heavy wall pipes. Ideal for external and internal bevelling, elbow bevelling, and facing tasks, the PREP 2 is perfect for high-volume work like heat exchanger projects and power station shutdowns. Its torque-reactive design allows for easy on-site use without the need to fix pipes, making it a versatile solution for maintenance and repair jobs. Built from CNC-machined aluminum and nickel-plated for durability, the PREP 2 delivers reliable, high-precision results in tough environments.
PREP 2 Pipe Bevelling Machine
RANGE: 0.9" – 1.65" ID / 23 – 42 mm ID, Optional from 0.5" ID / 12.5 mm ID
Mobile Nav
| Description | Pneumatic | Electric | Battery |
| Part Number | TP2P / TP2PALD / TP2PALL | TP2E110 / TP2E220 | TP2B110 / TP2B220 |
| Locking tube range mm (i/d) | 23 – 42 mm optional from 12.5 | 23 – 42 mm optional from 12.5 | 23 – 42 mm optional from 12.5 |
| Locking tube range inch (i/d) | 0.9 – 1.65″ optional from 0.5″ | 0.9 – 1.65″ optional from 0.5″ | 0.9 – 1.65″ optional from 0.5″ |
| Idle speed | 5 – 215 rpm | 5 – 250 rpm | 80 / 120 / 160 rpm |
| Torque | 56 Nm | 50 Nm | 60 Nm |
| Length of axial feed | 24 mm / 0.94″ | 24 mm / 0.94″ | 24 mm / 0.94″ |
| Max operating temperature | 55°C | 55°C | 55°C |
| Max acoustic radiation | 75 dB | 75 dB | 75 dB |
| Pneumatic motor power | 0.7 hp | n/a | n/a |
| Air consumption | 28 cfm / 800 L/min | n/a | n/a |
| Air working pressure | 90 psi / 6.5 bar | n/a | n/a |
| Air hose connection | 1/2″ | n/a | n/a |
| Electric motor power | n/a | 720 watt | 800 watt |
| Voltage | n/a | 110 or 220 volt | charger 110 or 220 volt |
| Frequency | n/a | 50 / 60 Hz | charger 50 / 60 Hz |
| Unit weight | 4.8 kg / 10.6 lbs | 5.5 kg / 12 lbs | 5.7 kg / 12.5 lbs |
| Packing dimensions | 545 x 400 x 120 mm / 21.4 x 15.7 x 4.7″ | 545 x 400 x 120 mm / 21.4 x 15.7 x 4.7″ | 560 x 570 x 120 mm / 22 x 22.4 x 4.7″ |
| Packing weight | 13.5 kg / 30 lbs | 14.5 kg / 32 lbs | 15.5 kg / 34 lbs |
| Our group policy is one of continuous improvement. Products and data tables are subject to change and may vary from those illustrated. | |||
The TAG PREP 2 Tube and Pipe beveller combines compact design with powerful performance, making it an essential tool for various pipe prep and weld prep applications. With its innovative features and versatile capabilities, the PREP 2 excels in demanding environments, ensuring reliable and precise results. Whether you’re tackling high-volume projects or on-site maintenance tasks, this machine is built to meet your needs.
POWERFUL PERFORMANCE
Compact Yet Powerful: The PREP 2 is the smallest in our range of ID locking, direct in-line feed end prep machines, delivering exceptional power for pipe prep and tube prep applications in a compact and lightweight form.
4-Jaw Tool Holder: Accommodates up to 4 form tools simultaneously, allowing efficient weld prep, J prep, and facing on both thin wall tubes and heavy wall pipes.
Torque Reactive Design: The PREP 2’s torque reactive design eliminates the need to fix the pipe or tube during operation, making it particularly useful for on-site jobs, maintenance, and repair situations involving bevelling and pipe prep.
VERSATILITY
Wide Range of Functions: Performs external and internal bevelling, elbow bevelling, facing, weld removal, J prep, and tube prep efficiently, making it versatile for a variety of pipe prep and end prep applications.

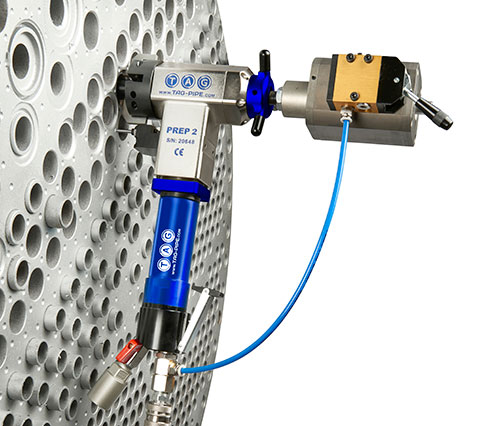

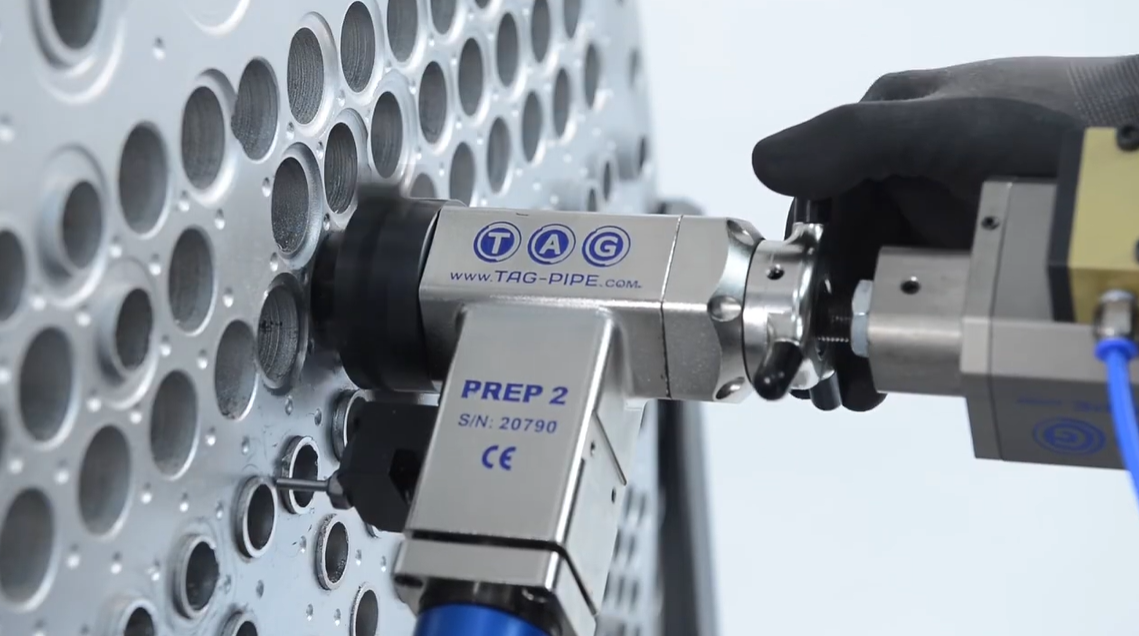

Popular for High-Volume Work: The PREP 2 is highly popular in high-volume applications such as heat exchanger work, tube facing, and boiler panel bevelling during power station shutdowns, due to its size, power, and versatility.
Material Compatibility: Handles a variety of materials, including steel, stainless steel, and exotic alloys, making it suitable for pipe prep, tube prep, and elbow beveller work.
Power Options: Available in pneumatic, electric (110V or 220V), and battery-powered (110V or 220V) models, offering flexibility for various weld prep job sites.
RELIABILITY
Secure Jaw Locking System: The 3-jaw equilateral locking system ensures secure and stable clamping, locking tightly to the pipe’s bore, providing superior precision and stability during bevelling, facing, and J prepping operations.
Lightweight and Durable: Despite its small size, the PREP 2 is CNC machined from solid aluminum and nickel-plated for enhanced strength, offering precise tolerances that ensure stability under load. This durable build makes it highly reliable in tough environments, delivering consistent, high-precision performance for pipe prep and weld prep operations.
Heavy-Duty Stability: The PREP 2 is engineered for stability, allowing it to handle the most demanding pipe prep tasks like J prep, elbow bevelling, and weld removal without movement under heavy loads.
OPERATING MANUAL
TAG PREP 2 Portable Pipe Bevelling Machine 0.5 - 1.5" (NEW 2021 VERSION)
