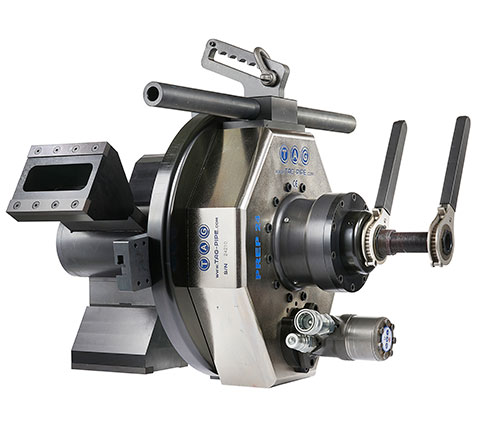

The TAG PREP 24 Pipe Beveller is the largest and most powerful machine in TAG’s heavy-duty range, designed for demanding applications such as external and internal bevelling, facing, counter-boring, weld removal, J-prepping, and compound bevelling. With a 6.89 – 23.62-inch (175 – 600 mm ID) working range, it handles all types of steel and exotic alloys powered by servo-electric, pneumatic, or hydraulic options. Featuring ratcheted ID jaw locking and ratchet bevel feed control, it easily manages heavy wall preps. The machine can perform multiple operations simultaneously with its multi-position tool holders yet remains lightweight, making it ideal for on-site, offshore, nuclear, and other precision applications. Its ratchet feed and locking system ensures easy setup, precise results, and exceptional value in challenging environments.
PREP 24 Pipe Bevelling Machine
RANGE: 6.89 - 23.62" i/d / 175 - 600 mm i/d
Mobile Nav
| Description | Pneumatic | Servo Electric | Servo Electric w/Auto Feed | Hydraulic |

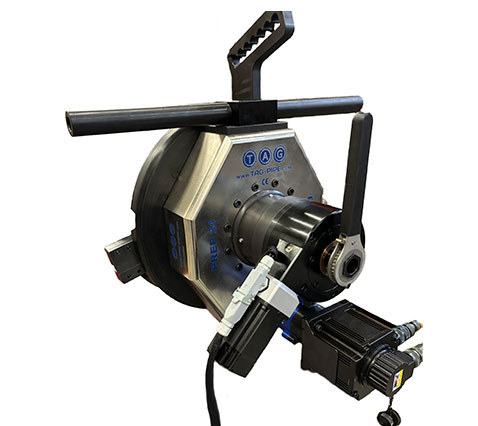

| Part Number | TP24P | TP24SE110 / TP24SE220 | TP24SE110AF / TP24SE220AF | TP24H |
| Locking tube range (ID) | 175 – 600 mm / 6.89 – 23.62″ | 175 – 600 mm / 6.89 – 23.62″ | 175 – 600 mm / 6.89 – 23.62″ | 175 – 600 mm / 6.89 – 23.62″ |
| Working range (OD) | 180 – 604 mm / 7 – 24″ | 180 – 604 mm / 7 – 24″ | 180 – 604 mm / 7 – 24″ | 180 – 604 mm / 7 – 24″ |
| Idle speed | 2 – 9 rpm | 2 – 9 rpm | 2 – 9 rpm | 2 – 14 rpm |
| Length of axial feed | 60 mm / 2.4″ | 60 mm / 2.4″ | 60 mm / 2.4″ | 60 mm / 2.4″ |
| Max operating temperature | 55°C | 60°C | 60°C | 60°C |
| Max acoustic radiation | 75 dB | 45 dB | 45 dB | 55 dB |
| Pneumatic Motor Power | 3.5 hp | n/a | n/a | 5.4 hp |
| Air Consuming Flux | 90 cfm / 2500 L/min | n/a | n/a | n/a |
| Air working pressure | 90 psi / 6.5 bar | n/a | n/a | n/a |
| Air Hose Connection | 3/4″ | n/a | n/a | n/a |
| Servo Electric Motor Power | n/a | 1.5 kW | 1.5 kW | n/a |
| Voltage | n/a | 110 or 220 volt | 110 or 220 volt | refer to hydraulic power pack |
| Frequency | n/a | 50 / 60 Hz | 50 / 60 Hz | refer to hydraulic power pack |
| Remote Control | No | Yes | Yes | Yes |
| Forward / Reverse | No | Yes | Yes | Yes |
| Unit weight | 214 kg / 471 lbs | 216 kg / 476 lbs | 216 kg / 476 lbs | 210 kg / 462 lbs |
| Packing dimensions L x W x H | 1200 x 840 x 910 mm / 47.2 x 33 x 35.8″ | 1200 x 840 x 910 mm / 47.2 x 33 x 35.8″ | 1200 x 840 x 910 mm / 47.2 x 33 x 35.8″ | 1200 x 840 x 910 mm / 47.2 x 33 x 35.8″ |
| Packing weight | 412 kg / 908 lbs | 424 kg / 935 lbs | 424 kg / 935 lbs | 408 kg / 900 lbs |
| Our group policy is one of continuous improvement. Products and data tables are subject to change and may vary from those illustrated. | ||||
The TAG PREP 24 Tube and Pipe beveller is the largest machine in TAG’s range of heavy-duty, mid-to-large diameter bevelling equipment.
POWERFUL PERFORMANCE:

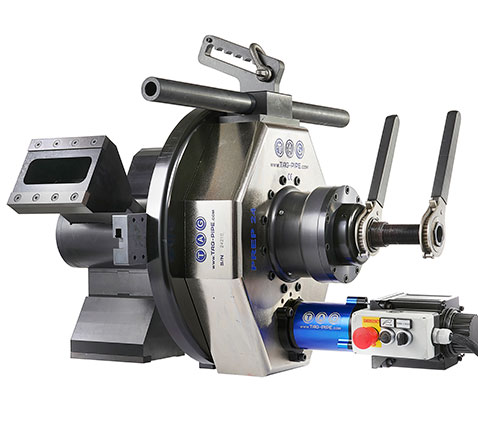

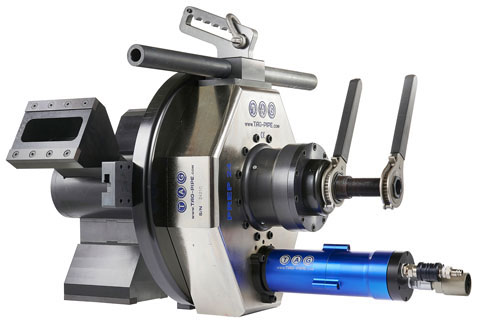

3.5 HP Motor: Equipped with a powerful pneumatic motor, with servo-electric (110V or 220V) and hydraulic options available, providing unmatched power for demanding tasks like pipe bevelling, compound bevelling, and facing.
Heavy-Duty Applications: Capable of performing bevelling, facing, counter-boring, compound bevelling, weld removal, and J-prepping with superior precision and power.

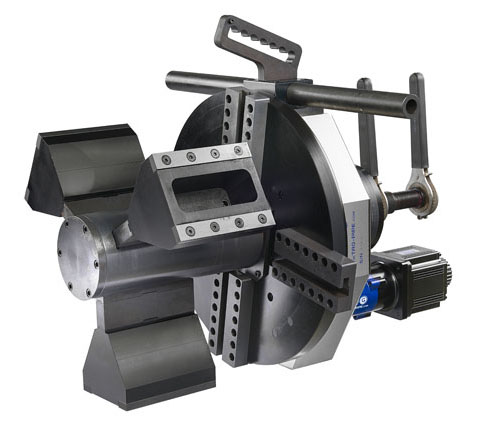

6-Point Jaw Locking: Wide locking jaws deliver superior clamping force for chatter-free machining, ensuring consistent performance even during heavy-duty operations.
Durable Tool Holders: Hardened tool holders ensure precision and longevity, built for high-volume use.
VERSATILITY:
Wide Working Range: Handles pipes from 6.9 inches ID to 24 inches OD, making it suitable for a wide variety of applications including compound bevelling, facing, and counter-boring.
Multi-Position Tool Holders: Capable of holding up to 4 tools simultaneously for J-prepping, counter-boring, and facing, increasing efficiency and flexibility.
Material Compatibility: Handles a variety of materials, including steel, stainless steel, and exotic alloys, making it suitable for external bevelling, internal bevelling, facing, counter-boring, weld removal, j-prepping, and compound bevels.
Power Options: Available in pneumatic (3.5 HP), servo electric (110V or 220V), and hydraulic powered models, offering flexibility for various job site requirements.
Comprehensive Tooling: Supports both standard and custom tooling to perform a wide variety of machining operations, including specialized tasks like compound bevelling and facing.
RELIABILITY:
Ratcheted Feed and Locking System: Ensures consistent and precise operation with minimal effort. Suitable for pipe diameters from 7″ to 24″ (ID), making it adaptable to a wide variety of bevelling, counter-boring, and facing tasks across industries.
Compact and Lightweight: Despite its robust build, the Prep 24 pipe beveller is designed for easy transport and setup, making it an excellent choice for fieldwork.
Solid Construction: Built to withstand the demands of continuous machining operations, day after day, in challenging environments.
OPERATING MANUAL
TAG PREP 24 Portable Pipe Bevelling Machine 7 - 24" (NEW 2021 VERSION)
