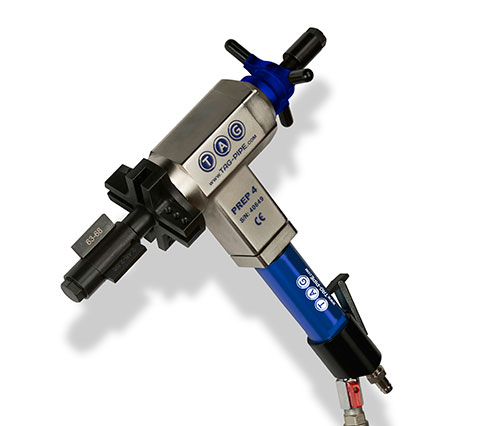

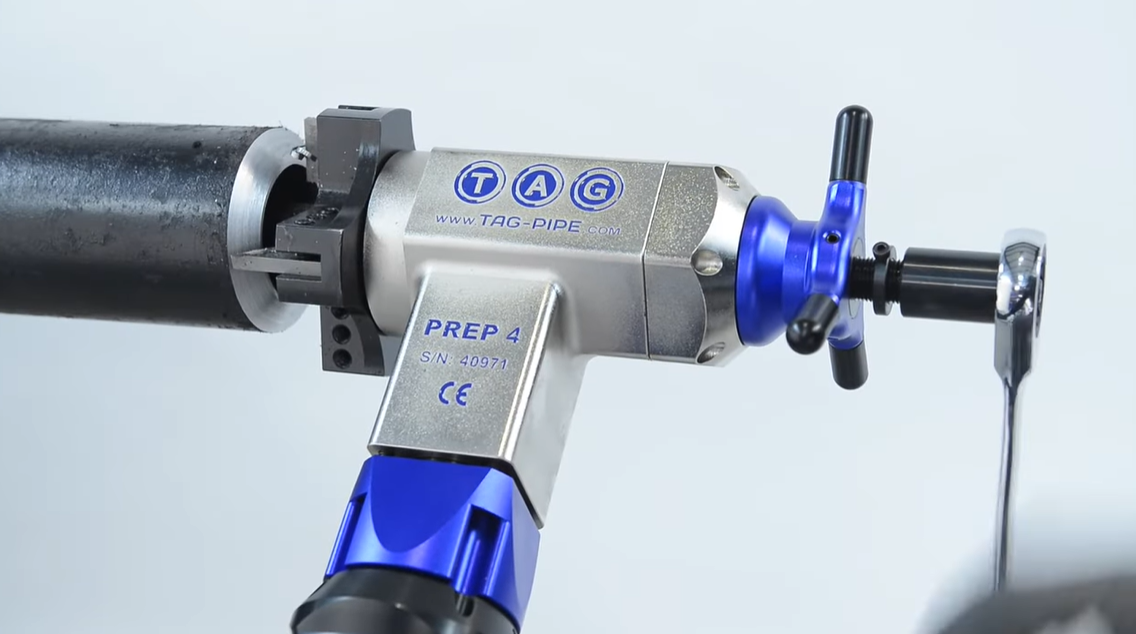

The TAG PREP 4 Pipe beveller is a versatile and powerful ID locking, in-line feed end prep machine that excels in external and internal bevelling, facing, counterboring, weld removal, and J-prepping, including tube plate facing. Compatible with any type of steel or exotic alloy, it can be mounted on straight pipes, elbows, and fittings for precise pipe prep and tube prep work. Available in pneumatic, electric, or battery (110V or 220V) power options, its exceptional power-to-weight ratio makes it unrivaled in its class. The 4-jaw tool holder accommodates up to four insert or form tools, allowing for simultaneous external, internal, and tube-facing tasks, ensuring accurate, repeatable results. Compact and robust, the PREP 4 is a popular choice for high-volume boiler repair, tube facing, and weld removal applications.
PREP 4 Pipe Bevelling Machine
RANGE: 1.1 - 4.40" i/d / 23 - 112 mm i/d
Mobile Nav
| Description | Pneumatic | Electric | Battery |
| Part Number | TP4P / TP4PALD | TP4E110 / TP4E220 | TP4B110 / TP4B220 |
| Locking tube range mm (i/d) | 23 – 112 mm | 23 – 112 mm | 23 – 112 mm |
| Locking tube range inch (i/d) | 1.1 – 4.40″ | 1.1 – 4.40″ | 1.1 – 4.40″ |
| Idle speed | 5 – 100 rpm | 5 – 82 rpm | 23 / 37 / 50 rpm |
| Torque | 176 Nm | 152 Nm | 140 Nm |
| Length of axial feed | 40.5 mm / 1.59 lbs | 40.5 mm / 1.59 lbs | 40.5 mm / 1.59 lbs |
| Max operating temperature | 55°C | 55°C | 55°C |
| Max acoustic radiation | 75 dB | 75 dB | 75 dB |
| Pneumatic motor power | 1.35 hp | n/a | n/a |
| Air consumption | 36 cfm / 1020 L/min | n/a | n/a |
| Air working pressure | 90 psi / 6.5 bar | n/a | n/a |
| Air hose connection | 1/2″ | n/a | n/a |
| Electric motor power | n/a | 1300 watt | 800 watt |
| Voltage | n/a | 110 or 220 volt | charger 110 or 220 volt |
| Frequency | n/a | 50 / 60 Hz | charger 50 / 60 Hz |
| Unit weight | 9.4 kg / 20.7 lbs | 10.4 kg / 23 lbs | 11.1 kg / 24.5 lbs |
| Packing dimensions | 640 x 500 x 140 mm / 25.2 x 19.7 x 5.5″ | 640 x 500 x 140 mm / 25.2 x 19.7 x 5.5″ | 640 x 640 x 140 mm / 25.2 x 25.2 x 5.5″ |
| Packing weight | 28.5 kg / 63 lbs | 29.5 kg / 65 lbs | 30.5 kg / 67 lbs |
| Our group policy is one of continuous improvement. Products and data tables are subject to change and may vary from those illustrated. | |||
The TAG PREP 4 Pipe beveller is one of our most popular ID locking, in-line feed end prep machines, offering an unmatched power-to-weight ratio across electric, battery (110V or 220V), and pneumatic drive options.
POWERFUL PERFORMANCE
Powerful Drive Motors: Provides the speed for light-wall tubing and the torque needed for heavy-wall alloy tubes, making quick work of pipe prep and tube prep tasks.
4-Jaw Tool Holder: Accommodates up to 4 insert or form tools for precise and simultaneous external, internal bevelling, tube-facing, and J-prepping.
Exceptional Power-to-Weight Ratio: Delivers high power while remaining lightweight, ideal for demanding weld prep, bevelling, and elbow beveller applications.
Wide Range of Applications: Excels in external/internal bevelling, counter-boring, facing, weld removal, and J-prepping, ensuring consistent performance across various tasks.
VERSATILITY
Narrow Head Width: Allows the machine to function in tight spaces, such as boiler water walls, making it ideal for confined environments like elbow bevelling.
Encapsulated Locking Jaws: Enables quick changes between different size ID pipes during pipe prep and tube prep without fear of part loss, enhancing operational efficiency.
Multiple Feed Options: Provides fast, consistent feeds for shop fabrication and on-site weld prep in tight clearance applications.
Corrosion-Resistant Finish: Protects the machine from weathering, ensuring durability for bevelling, weld prep, and J-prepping in tough environments.
Compatible with Various Materials: Handles a variety of materials, including steel, stainless steel, and exotic alloys, making it suitable for pipe prep, tube prep, and elbow beveller work.

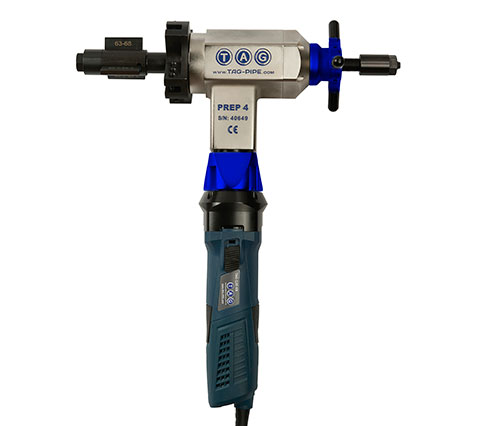

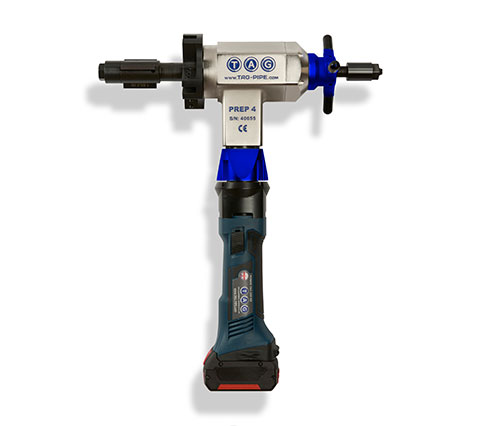

Power Options: Available in pneumatic, electric (110V or 220V), and battery-powered versions, providing flexibility for on-site prep and fabrication work.
EASY TO USE
Finer Feed Screws: Simplifies feed advancement during weld prep and bevelling, reducing operator strain and ensuring smoother operation.

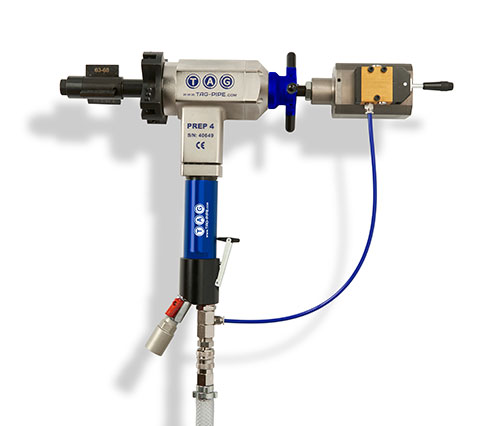

Air Lock Option: Dramatically saves time on high-volume pipe and tube prep jobs by instantly locking and unlocking the tool with the flip of a valve.
Lightweight Aluminum Components: Ensures easy handling, making bevelling, weld prep, and tube-facing easier for a single operator.
Heavy-Duty Storage Case: The machine is protected with foam inserts, safeguarding it during on-site transport or storage, ensuring it’s ready for pipe prep and tube prep.
Quick Tool Changes: The 4-jaw chuck design allows fast and easy tool bit changes, improving efficiency during high-volume tasks like boiler repair, tube-facing, and elbow bevelling.
OPERATING MANUAL
TAG PREP 4 Portable Pipe Bevelling Machine 1 - 4" (NEW 2021 VERSION)
