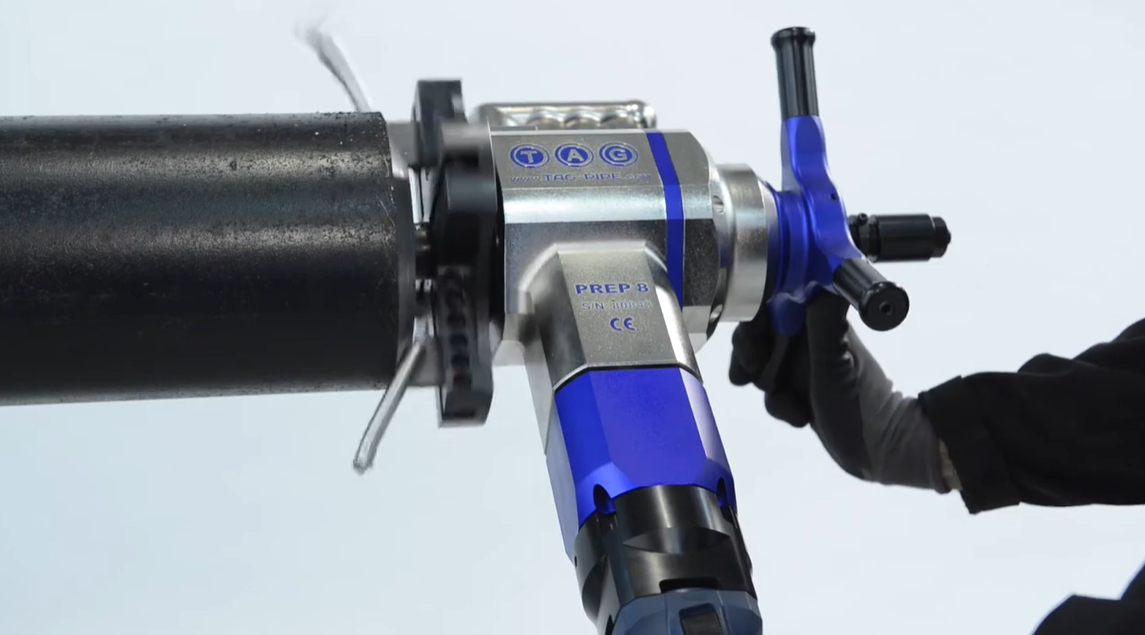

The TAG PREP 8 Pipe beveller is a powerful, versatile end prep machine known for its 1.93-8.46 inch (48 – 215 mm ID) working range and ability to handle demanding tasks like external and internal bevelling, elbow and fittings bevelling, facing, counter-boring, weld removal, J-prepping, and compound bevelling. It is constructed to work with all types of steel and exotic alloys; it offers pneumatic, electric, and battery power options, making it portable and ideal for one man to operate. With offset 4-jaw tool holders and the ability to use up to four insert or form tools simultaneously, the PREP 8 excels in high-volume, heavy-duty applications, making it a top choice for professionals both on-site and in workshops, especially for pipe prep and tube prep.

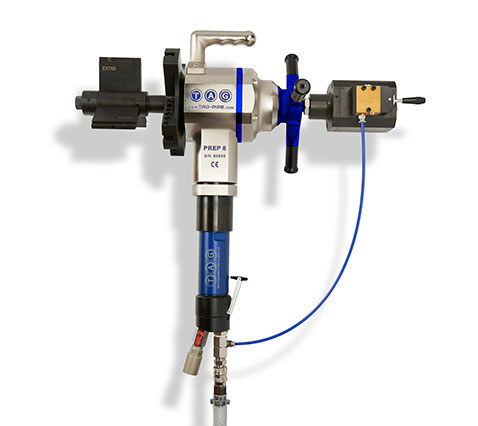

PREP 8 Pipe Bevelling Machine
RANGE: 1.93 - 8.46" i/d / 48 - 215 mm i/d
Mobile Nav
| Description | Pneumatic | Electric | Battery |
| Part Number | TP8P / TP8PALD | TP8E110 / TP8E220 | TP8B110 / TP8B220 |
| Locking tube range mm (i/d) | 50 – 215 mm | 50 – 215 mm | 50 – 215 mm |
| Locking tube range inch (i/d) | 1.96 – 8.46″ | 1.96 – 8.46″ | 1.96 – 8.46″ |
| Idle speed | 5 – 52 rpm | 5 – 34 rpm | 7 / 13 / 18 rpm |
| Torque | 265 Nm | 280 Nm | 425 Nm |
| Length of axial feed | 40 mm / 1.57″ | 40 mm / 1.57″ | 40 mm / 1.57″ |
| Max operating temperature | 55°C | 55°C | 55°C |
| Max acoustic radiation | 75 dB | 75 dB | 75 dB |
| Pneumatic motor power | 1.85 hp | n/a | n/a |
| Air consumption | 50 cfm / 1400 L/min | n/a | n/a |
| Air working pressure | 90 psi / 6.5 bar | n/a | n/a |
| Air hose connection | 3/4″ | n/a | n/a |
| Electric motor power | n/a | 1900 watt | 18V (1500) watt |
| Voltage | n/a | 110 or 220 volt | charger 110 or 220 volt |
| Frequency | n/a | 50 / 60 Hz | charger 50 / 60 Hz |
| Unit weight | 25 kg / 55 lbs | 26 kg / 57 lbs | 26 kg / 57 lbs |
| Packing dimensions | 830 x 780 x 250 mm / 32.7 x 30.7 x 9.8″ | 830 x 610 x 250 mm / 32.7 x 24 x 9.8″ | 830 x 610 x 250 mm / 32.7 x 24 x 9.8″ |
| Packing weight | 55 kg / 121 lbs | 54 kg / 119 lbs | 54 kg / 119 lbs |
| Our group policy is one of continuous improvement. Products and data tables are subject to change and may vary from those illustrated. | |||
The TAG PREP 8 Pipe beveller is a real workhorse. Its size, power, and functionality make it extremely popular in high volume heavy-duty bevelling applications, on-site, or in the workshop.
POWERFUL PERFORMANCE

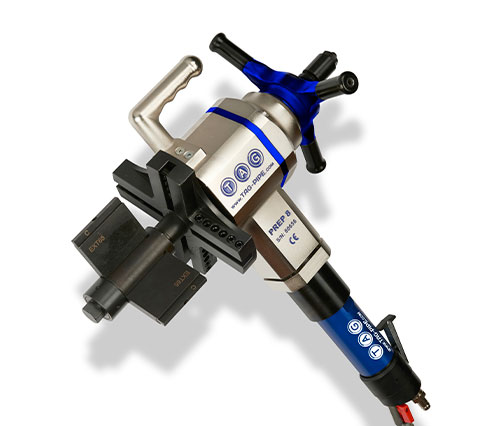

1.85 Hp Pneumatic Motor: Delivers high speed and torque to quickly cut through heavy wall pipes made of carbon, chrome-moly, or stainless steel.
Torque-Free Operation: Locks the machine securely into the pipe, allowing for effortless operation without requiring additional torque restraint.
ID Locking, In-Line Feed Design: Ensures precise alignment and consistent results, even under challenging conditions.
Offset 4-Jaw Tool Holder: Accommodates up to 4 insert or form tools for precise and simultaneous external, internal bevelling of even the heaviest wall pipe.
Unmatched Power-to-Weight Ratio: Delivers high power while remaining lightweight, ideal for demanding weld prep, bevelling, and elbow beveller applications.
VERSATILITY
Multiple Tooling Options: Supports bevelling, counterboring, and J-prepping with high-speed steel or indexable carbide tooling.
Material Compatibility: Handles a variety of materials, including steel, stainless steel, and exotic alloys, making it suitable for pipe prep, tube prep, elbow bevelling, facing, and compound bevels.

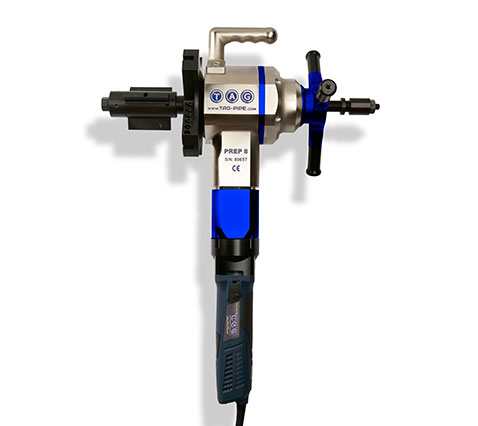

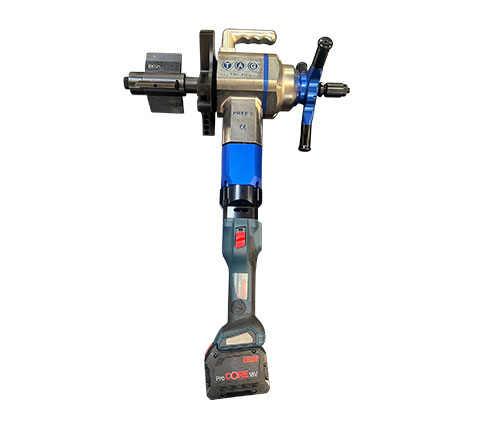

Power Options: Available in pneumatic, electric (110V or 220V), and battery-powered models, offering flexibility for various weld prep job sites.
RELIABILITY
Self-Centering 3-Leg ID Locking System: Automatically centers the tool in the pipe, ensuring accurate and reliable machining.
Lightweight Design: Aluminum alloy components make the machine lightweight and easy to handle, simplifying bevelling, weld prep, and tube-facing for a single operator.
Quick Tool Bit Changes: Standard set screws simplify tool bit changes, eliminating the need to reach around the tool to release the blade.
Corrosion-Resistant Finish: Protects external components from weathering, extending the machine’s lifespan in tough environments.
Proven Workhorse: Designed for high-volume, heavy-duty operations, delivering consistent performance in weld prep, tube prep, and elbow bevelling.
