The TAG Split Frame Clamshell Machines are versatile cold cutting and bevelling tools for pipes and vessels from 1″ to 120″ in diameter. With a lightweight aluminum body, durable steel inner ring, and wide clamping feet for quick, repeatable setups, these portable lathes handle cutting, bevelling, facing, and counterboring. Available with pneumatic, hydraulic, electric, and servo electric power options, they are easily customized with adjustable bearings and TAG’s transmission tool slides, making them ideal for demanding applications across industries.
Pipe Cold Cutting Machines
Pipe Cold Cutting Machines


Pipe Cold Cutting Machines

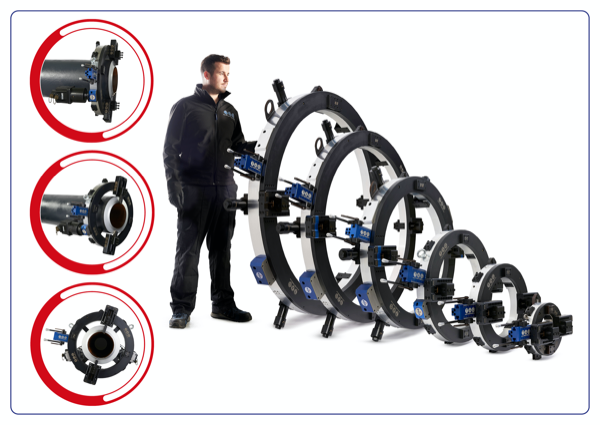

Split Frame 1″ to 48″ Clamshell Machine
Range (Inch) | 1" - 48" o/d |
Range (Metric) | 25.4 - 1,220 mm o/d |

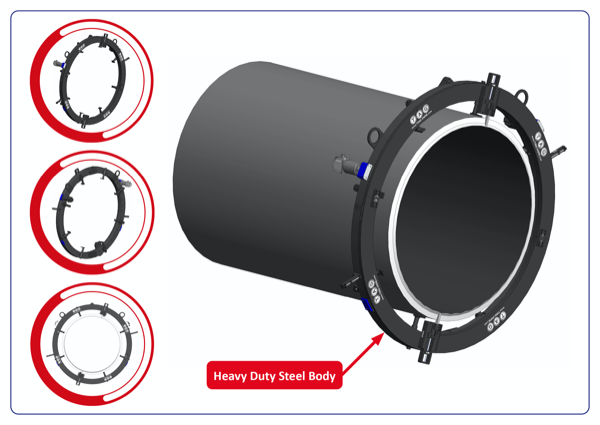

Split Frame 48″ to 120″ Clamshell Machine
Range (Inch) | 48" - 120" o/d |
Range (Metric) | 1,220 - 3,050 mm o/d |
Split Frame Clamshell CNC Crossbar
Range (Inch) | 6.6" - 76" o/d |
Range (Metric) | 168 - 1,930 mm o/d |

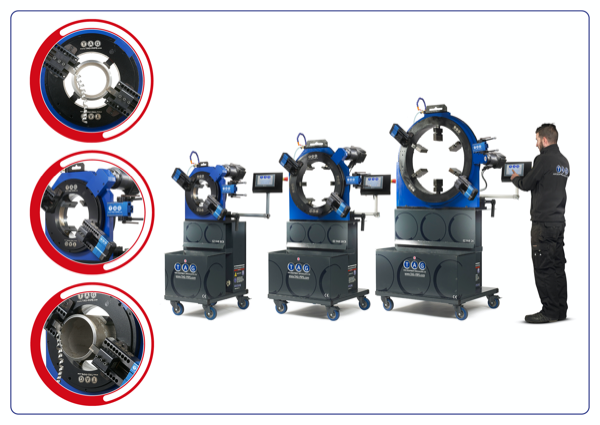

E-Z Fab Pipe Cold Cutting & Bevelling Machine
Range (Inch) | 2" - 16" |
Range (Metric) | 60 - 420 mm |
