TAG Duo Pipe Stand

Heavy duty four leg height adjustable, pin lock pipe stands

The Duo is height adjustable and uses quick change style heads. Designed for large diameter pipe rotation and feeding. With locking brakes on the wheels to secure the load for marking, layout or fit-up.
Now supplied with folding legs as standard for ease of use and transport and ultra safe pin locking design.



TAG Duo Pipe Stand

Features and Advantages

  • Load capacity 2,400kg / 5,290lbs
  • Folding legs for ease of transport and storage
  • Self centering head adjustment from either side
  • Height adjustable 29 to 43" (74—109cm)
  • 1/2 to 48" (12—900 mm) pipe diameter capacity
  • Quick height adjustment with additional
  • fine thread for workpiece levelling
  • ‘Trued’ wheels eliminate ‘corkscrewing’ of pipe during rotation
  • Lockable wheels to hold pipe in position
  • Safety pins to lock stand at working height
  • CE Conformity Certified with CE Mark

The Duo Stand utilises the fine adjustment thread. This allows precise adjustment of the working height and can compensate for uneven surfaces to ensure pipe is level at all times.

The unique safety locking pins allow the Duo Stand to be
fixed at the various working heights. Final adjustment and
leveling can then be made with the fine adjustment handle.




TAG Duo Pipe Stand Options

The Quick Change style heads increase the versatility of the duo stand.
The heads can be changed in a matter of seconds, without tools, to adapt to almost any applications.
Roller wheels are available in steel, stainless steel or nylon. Ball transfer heads are available in steel or stainless steel.


Simple Head Changeover



Duo Stand Options

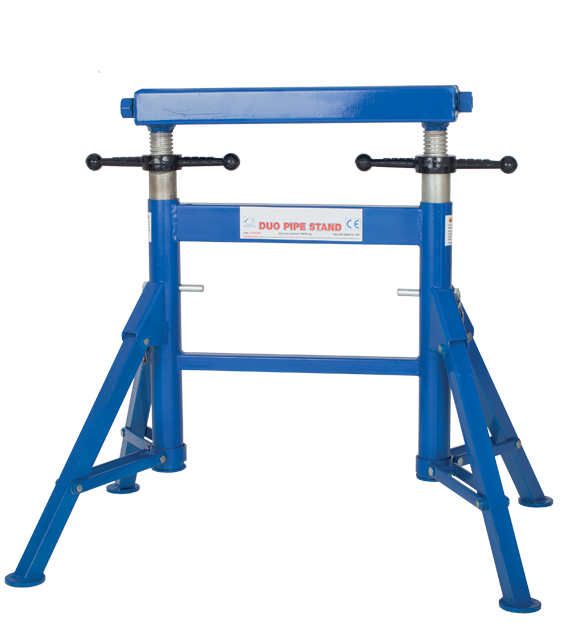

Base Unit Only
PART NO. LOAD CAPACITY (KG / LBS) WEIGHT (KG / LBS)
DPS200 2,400kg / 5,290lbs 19.5kg / 43lbs

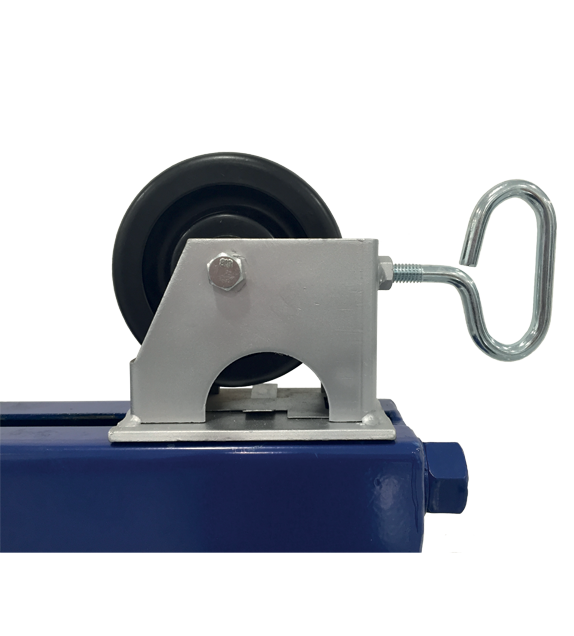

Pair Nylon Wheel Heads
PART NO. LOAD CAPACITY (KG / LBS) WEIGHT (KG / LBS)
* NWH200 450kg / 990lbs 2.2kg / 5lbs

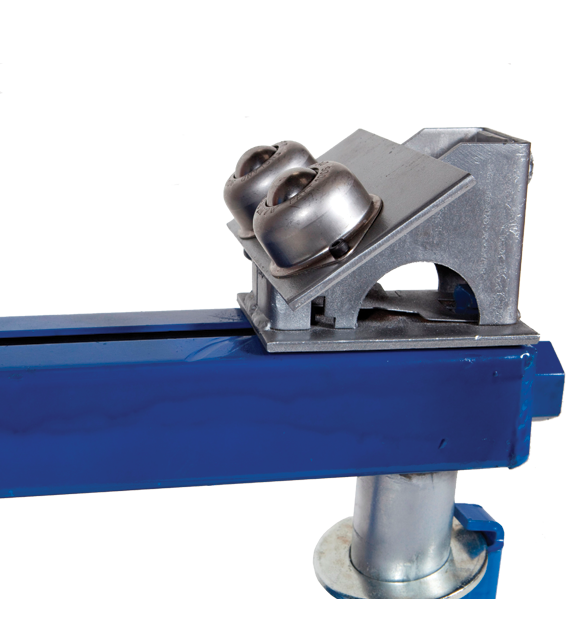

Pair Ball Transfer Heads
PART NO. LOAD CAPACITY(KG / LBS) WEIGHT (KG / LBS)
BTH200 1,450kg / 3,197lbs 3kg / 6lbs
* BTH200SS 1,450kg / 3,197lbs 3kg / 6lbs

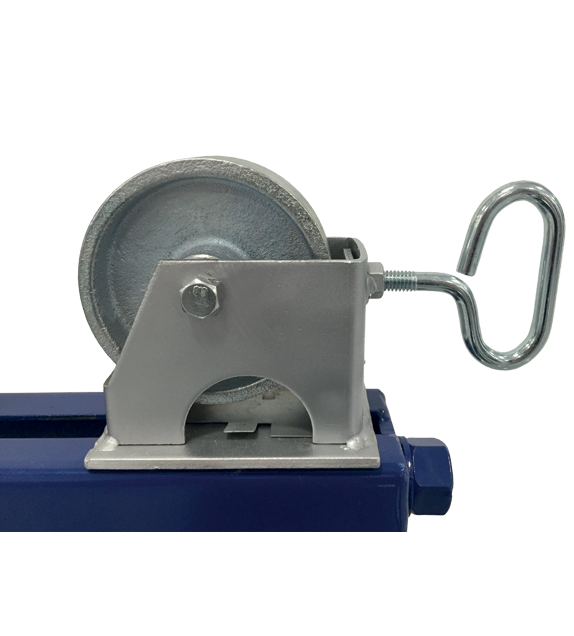

Pair Wheel Heads
PART NO. LOAD CAPACITY (KG / LBS) WEIGHT (KG / LBS)
SWH200 2,400kg / 5,290lbs 3kg / 6lbs
* SWH200SS 2,400kg / 5,290lbs 3kg / 6lbs
