TAG Tri Stands

Three-leg, height adjustable pipe stands for all pipework applications

TAG Pipe Equipment Specialists manufactures pipe stands that have been designed to give you the highest quality at the best price.
TAG Tri Stands are constructed from box section and are available with a variety of different head styles to suit any application.

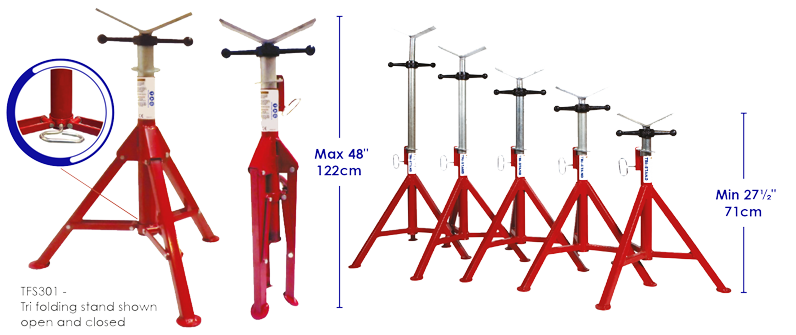

TAG Tri Stands

Features and Advantages

  • 1 1/8" Square box section construction
  • 1,000kg / 2,205lbs load capacity
  • Choice of fixed base or folding leg base
  • Folding legs allow for easy storage and transportation
  • Comprehensive range of 9 different head styles
  • Adjustable in height from 27—48" (71—122cm)
  • Independently load tested
  • CE Conformity Certified with CE Mark





Tri Stand Options

Tri Stand (base only)
PART NO. LOAD CAPACITY (KG / LBS) WEIGHT (KG / LBS) PIPE SIZE
TPS300 1,000kg / 2,205lbs 7.6kg / 17lbs 1–24"
Folding Tri Stand (base only)
PART NO. LOAD CAPACITY (KG / LBS) WEIGHT (KG / LBS) PIPE SIZE
TFS301 1,000kg / 2,205lbs 7.6kg / 17lbs 1–24"
Vee-Head
PART NO. LOAD CAPACITY (KG / LBS) WEIGHT (KG / LBS) PIPE SIZE
TVH300 1,000kg / 2,205lbs 3.4kg / 7lbs Up to 12"
Large Vee Head
PART NO. LOAD CAPACITY (KG / LBS) WEIGHT (KG / LBS) PIPE SIZE
TVH300L 1,000kg / 2,205lbs 7.6kg / 17lbs Up to 24"

Steel Wheel (slip on style)
PART NO. LOAD CAPACITY (KG / LBS) WEIGHT (KG / LBS) PIPE SIZE
SWH300 450kg / 990lbs 3.4kg / 7lbs 1–12"
* SWH300SS 450kg / 990lbs 3.4kg / 7lbs 1–12"
Steel Wheel
PART NO. LOAD CAPACITY (KG / LBS) WEIGHT (KG / LBS) PIPE SIZE
SWH350 1,000kg / 2,205lbs 4.9kg / 11lbs 1–24"
* SWH350SS 1,000kg / 2,205lbs 4.9kg / 11lbs 1–24"
Nylon Wheel (slip on style)
PART NO. LOAD CAPACITY (KG / LBS) WEIGHT (KG / LBS) PIPE SIZE
* NWH300 450kg / 992lbs 2kg / 5lbs 1–12"
Nylon Wheel
PART NO. LOAD CAPACITY (KG / LBS) WEIGHT (KG / LBS) PIPE SIZE
* NWH350 450kg / 990lbs 3.3kg / 7lbs 1–24"
Ball Transfer (slip on style)
PART NO. LOAD CAPACITY (KG / LBS) WEIGHT (KG / LBS) PIPE SIZE
BTH300 450kg / 990lbs 2.5kg / 6lbs 1–12"
* BTH300SS 450kg / 990lbs 2.5kg / 6lbs 1–12"
Roller Bar
PART NO. LOAD CAPACITY (KG / LBS) WEIGHT (KG / LBS) PIPE SIZE
RBH300 1,000kg / 2,205lbs 4.25kg / 9lbs n/a
PBH300 1,000kg / 2,205lbs 4.25kg / 9lbs Up to 12"
Pipe Chain Vice
PART NO. LOAD CAPACITY (KG / LBS) WEIGHT (KG / LBS) PIPE SIZE
PCV300 1000kg / 2205lbs 6.5kg / 14.3lbs 0.5–6"
Stainless Steel (slip on style)
PART NO. LOAD CAPACITY (KG / LBS) WEIGHT (KG / LBS) PIPE SIZE
* SSH300 1,000kg / 2,205lbs 1.0kg / 2lbs 1–12"

* Suitable for Stainless Steel
